Precision Laser Welding: Make Shock Absorbers with Zero Defects

As the core component of a vehicle's suspension system, the shock absorber bears the dual mission of buffering road impacts and stabilizing driving posture. Its reliability directly determines driving safety and comfort, especially in extreme scenarios such as off-road adventures and high-speed driving. Among the numerous manufacturing processes of shock absorbers, precision laser welding technology stands out as a key link to achieve zero defects. It uses high-energy density laser beams to realize seamless connection of metal components, breaking through the limitations of traditional welding processes, and building an unbreakable quality defense line for shock absorbers.

The Core Advantages of Precision Laser Welding: Transcending Traditional Welding

Compared with traditional welding methods such as resistance spot welding and arc welding, precision laser welding has inherent technical advantages that are difficult to match, laying a solid foundation for zero-defect production of shock absorbers. The core lies in the highly concentrated energy transmission mode—laser beams can be focused into a tiny spot, and in milliseconds, the metal surface is rapidly heated to the melting point to form a stable molten pool, realizing metallurgical bonding of materials.

The Whole Process of Precision Laser Welding for ROADFIT Shock Absorbers: The Pursuit of Zero Defects

Achieving zero-defect welding of shock absorbers is not a single-step process, but a systematic control covering pre-welding preparation, in-welding precision operation and post-welding strict inspection. ROADFIT has built a full-process intelligent laser welding production line, integrating advanced equipment and strict quality control standards to ensure that every weld meets the highest requirements.

Pre-Welding Preparation: Lay a Solid Foundation for Zero Defects

High-quality welding starts with strict pre-treatment. Before welding, ROADFIT conducts multi-dimensional processing on shock absorber components such as cylinders and piston rods. First, through precision cleaning processes such as degreasing and derusting, oil stains, oxides and impurities on the surface of the welding interface are completely removed—any tiny impurity may cause pores in the weld during the welding process, affecting sealing performance. Then, a professional fixture positioning system is used to clamp and fix the workpiece. In addition, the laser equipment will undergo pre-welding calibration, including focal length adjustment, energy detection and beam alignment, to ensure stable output of laser parameters during the welding process.

In-Welding Control: Intelligent Operation to Ensure Consistency

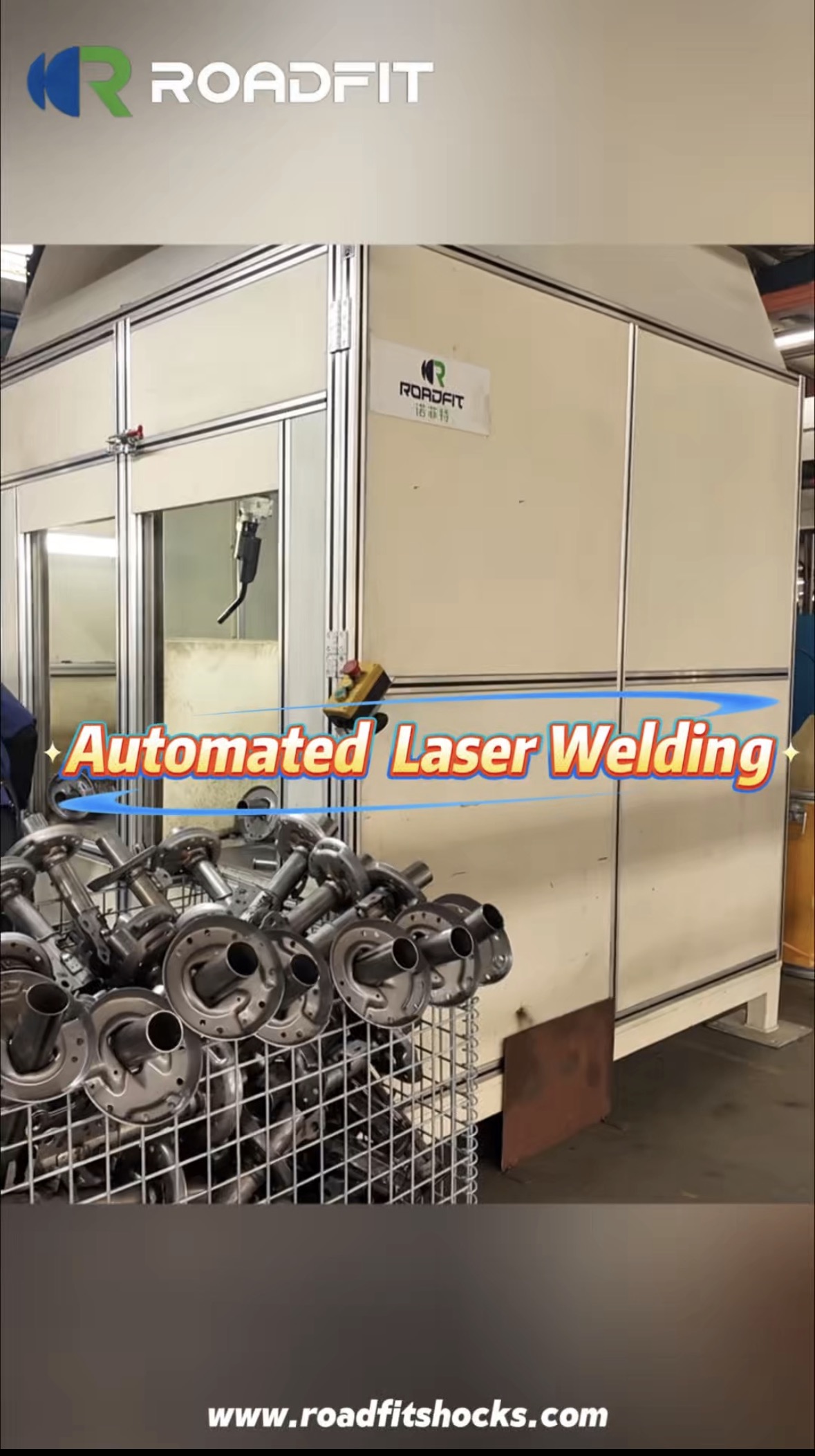

The in-welding link is the core of precision control. ROADFIT adopts a continuous fiber laser welding system, equipped with a dual-swing welding head and a dual-temperature dual-control cooling water machine, which can maintain stable operation for 24 hours continuously. During the welding of the circular seam of the shock absorber cylinder, the robotic arm drives the laser head to move along a preset trajectory at a uniform speed, and the laser power, welding speed and swing amplitude are dynamically adjusted through the intelligent control system according to the material thickness and welding position. The built-in real-time monitoring system monitors the molten pool shape, plasma state and energy fluctuation throughout the process. Once an abnormal parameter is detected, the system will immediately stop the machine and alarm, avoiding the continuous production of defective products. Compared with traditional pulse welding machines, the welding speed of this system is increased by 4-10 times, while ensuring the uniformity of each weld.

Post-Welding Inspection: Strict Screening to Achieve Zero Defects

Zero defects require zero tolerance in inspection. After welding, each shock absorber will go through a multi-level inspection process. First, visual inspection is carried out to check whether the weld surface is smooth, whether there are obvious defects such as cracks and depressions. Then, professional non-destructive testing equipment is used to conduct internal flaw detection on the weld, which can accurately identify tiny internal defects that are difficult to be found by the naked eye. Finally, mechanical performance and sealing performance tests are carried out—the weld is subjected to fatigue resistance tests under cyclic pressure, and the sealing performance is tested by high-pressure oil injection to ensure that there is no oil leakage even under extreme working conditions. Only products that pass all inspection items can enter the next assembly process.

How Zero-Defect Welding Empowers Shock Absorber Performance

The application of precision laser welding technology not only eliminates welding defects, but also fundamentally improves the comprehensive performance of shock absorbers, creating a better driving experience for users.In terms of reliability and durability, the dense and high-strength laser weld effectively prevents oil leakage of the shock absorber. Even in harsh working environments such as long-term vibration, high temperature and humidity, the weld can maintain stable sealing performance, extending the service life of the shock absorber.  In terms of performance stability, the minimal thermal deformation caused by laser welding ensures the dimensional accuracy of the shock absorber's internal structure, making the damping adjustment more sensitive and precise, and the driving posture more stable. In addition, the high efficiency of laser welding also shortens the production cycle of shock absorbers, ensuring the stability of product delivery while reducing production costs, which ultimately benefits users.

Precision laser welding is not just a manufacturing process, but a pursuit of extreme quality for shock absorbers. It uses technological precision to eliminate every possible defect, and uses unremitting craftsmanship to build a reliable core for shock absorbers. For ROADFIT, every laser beam that penetrates the metal carries the commitment to zero defects, ensuring that every shock absorber can stand the test of various road conditions. In the journey of pursuing higher performance and more reliable quality, precision laser welding will always be the core driving force for shock absorbers to move towards zero defects, escorting every driving experience.
